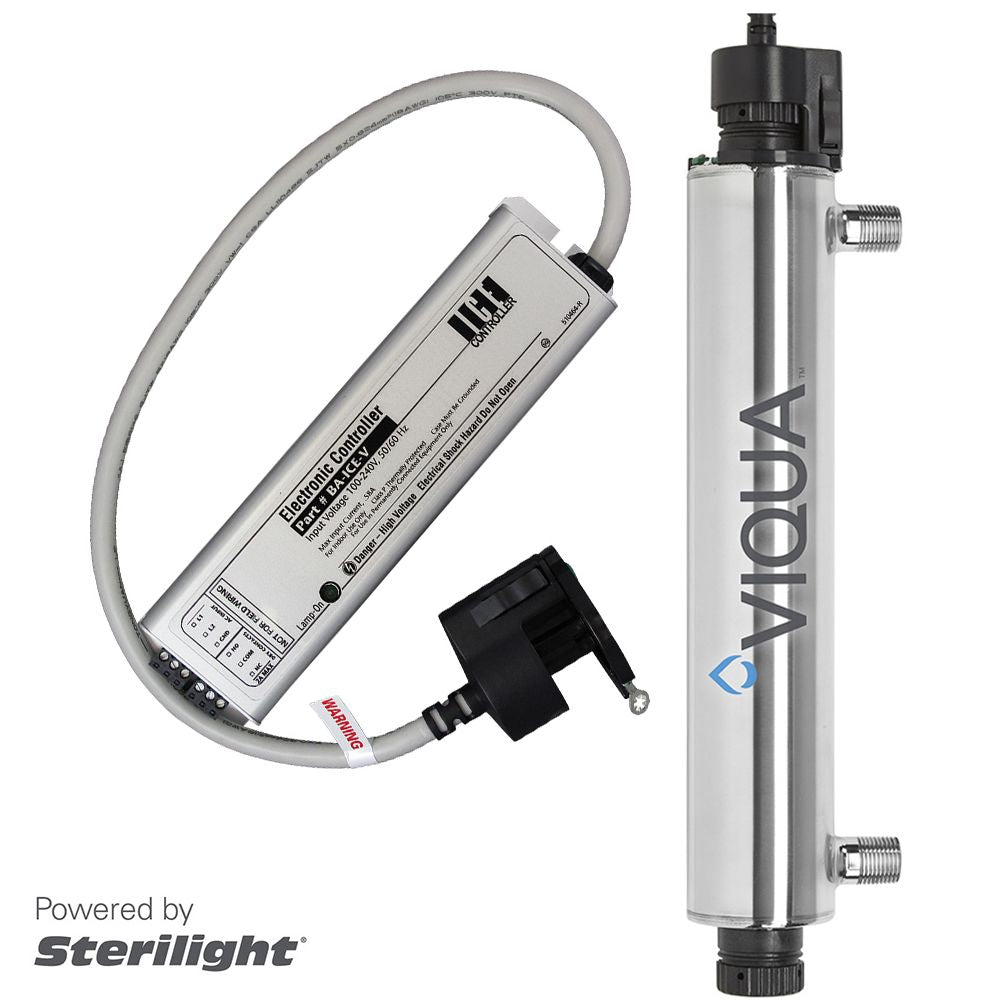

The Viqua S2Q-PV Silver Series UV System has been specifically designed for the unique requirements found in the OEM application of vending machines and dispensing equipment. The system features convenient screw terminal connections for both input power and dry contacts, NO or NC.

Features:

• Includes electronic Sterilight BA-ICE-V ballast, which features constant current control (patent pending), quick-lock moulded lamp connector, audible alarm, & power-on indicator
• Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
• Open-end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
• 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
• Hard glass, low-pressure mercury vapour lamps with high isolation pin design
• Nature's way to protect your water without the addition of harmful chemicals
• Easy servicing - no need to disconnect water flow to change UV lamp
• Seven year warranty on reactor chamber for unparalleled protection
• Includes mounting clamp
• CSA and CE compliant

This system is compatible with the S330RL Sterilight Lamp and the QS-330Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S2Q-PV includes: Sterilight Lamp (1): S330RL Sterilight Quartz Sleeve (1): QS-330 Sterilight O-Rings (2): 410867
