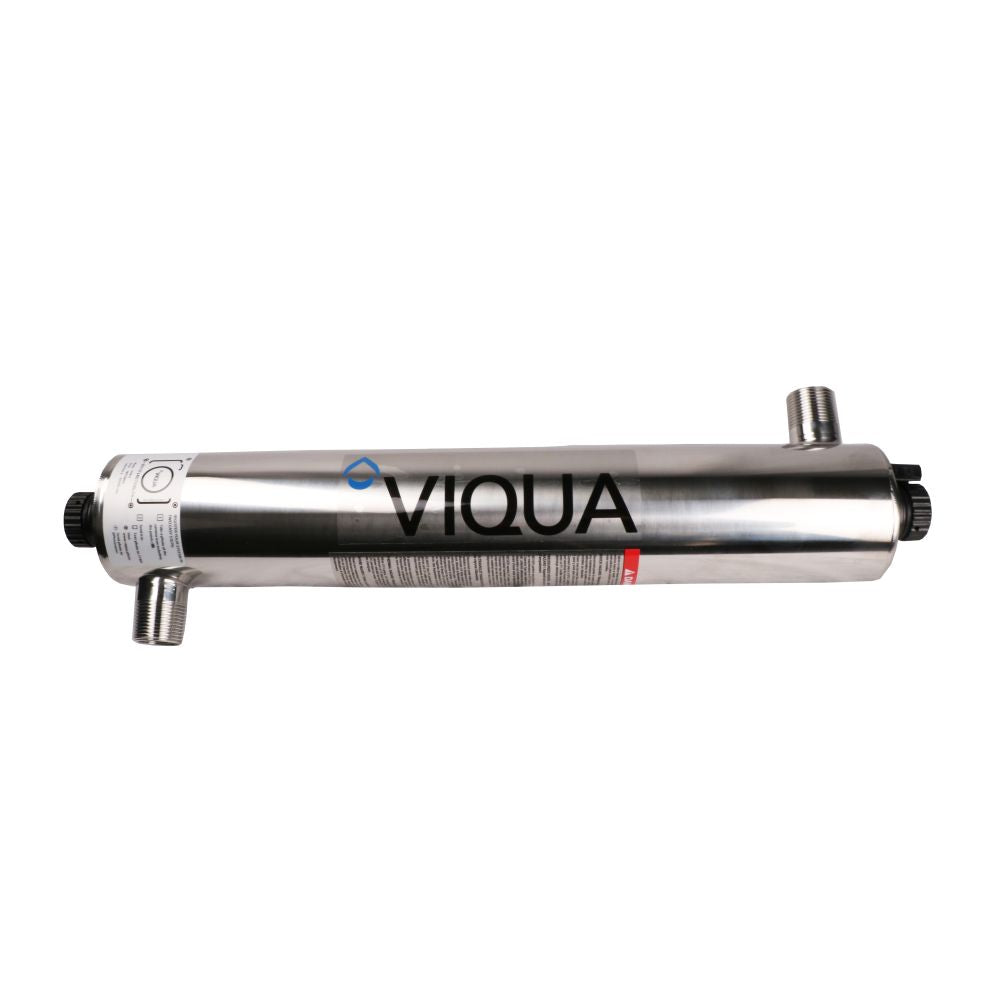

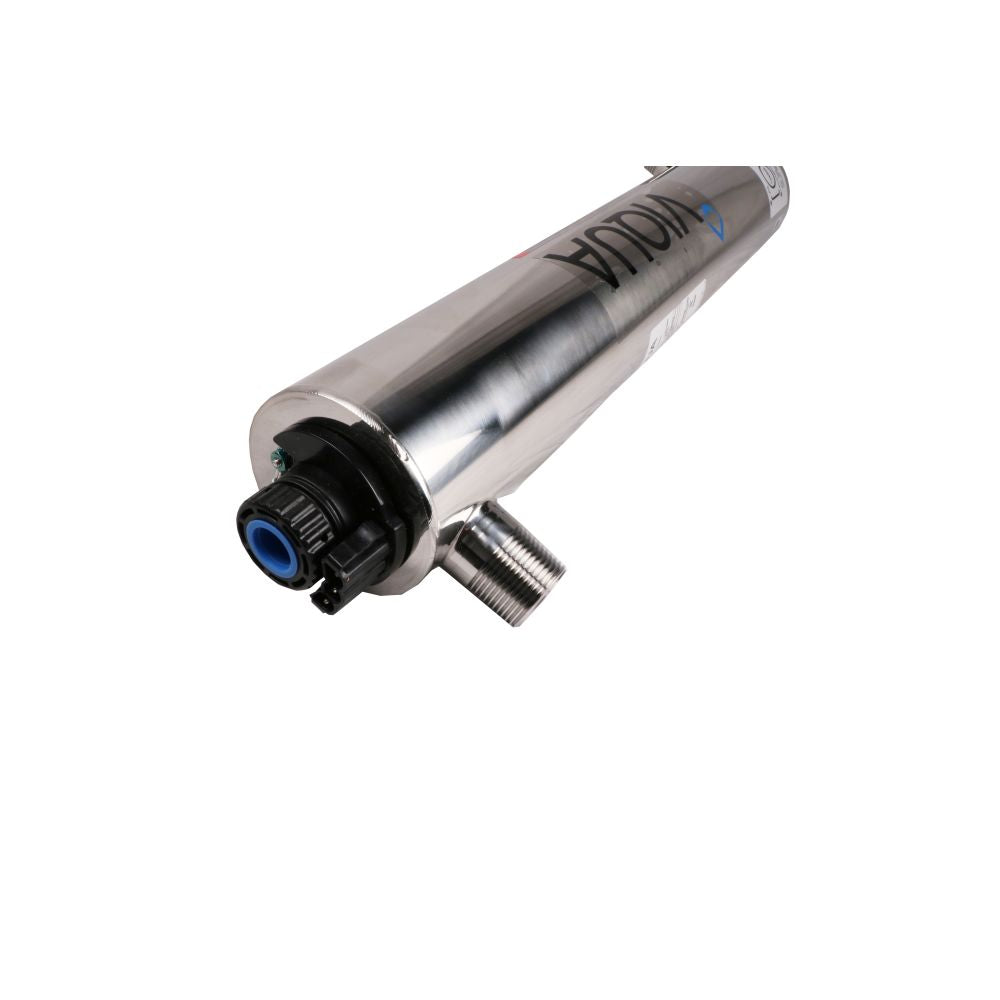

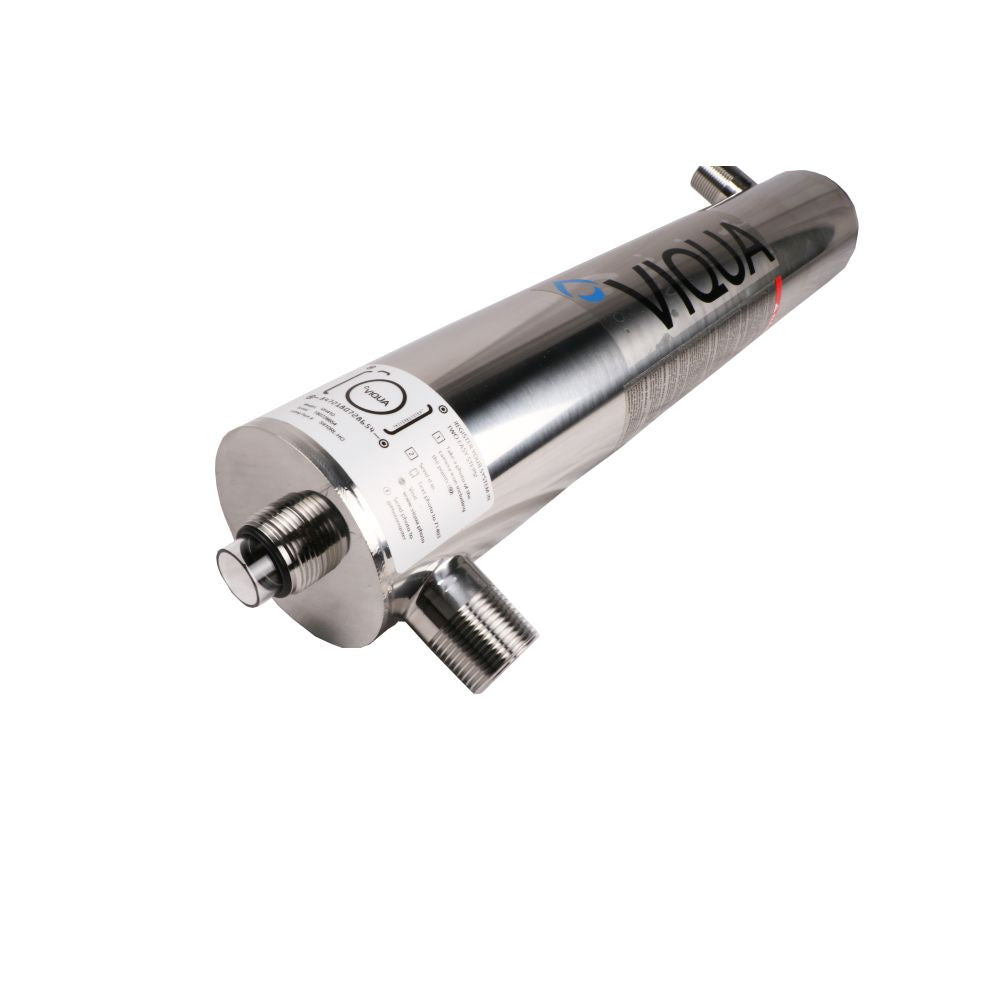

Viqua VH410-F20 UV System Powered By Sterilight 18 gpm

Part Number: VH410-F20

Viqua VH410-F20 UV System Powered By Sterilight 18 gpm

Part Number: VH410-F20
MSRP: $1,495.00
Regular price $1,271.00
Choose:

You May Also Need

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

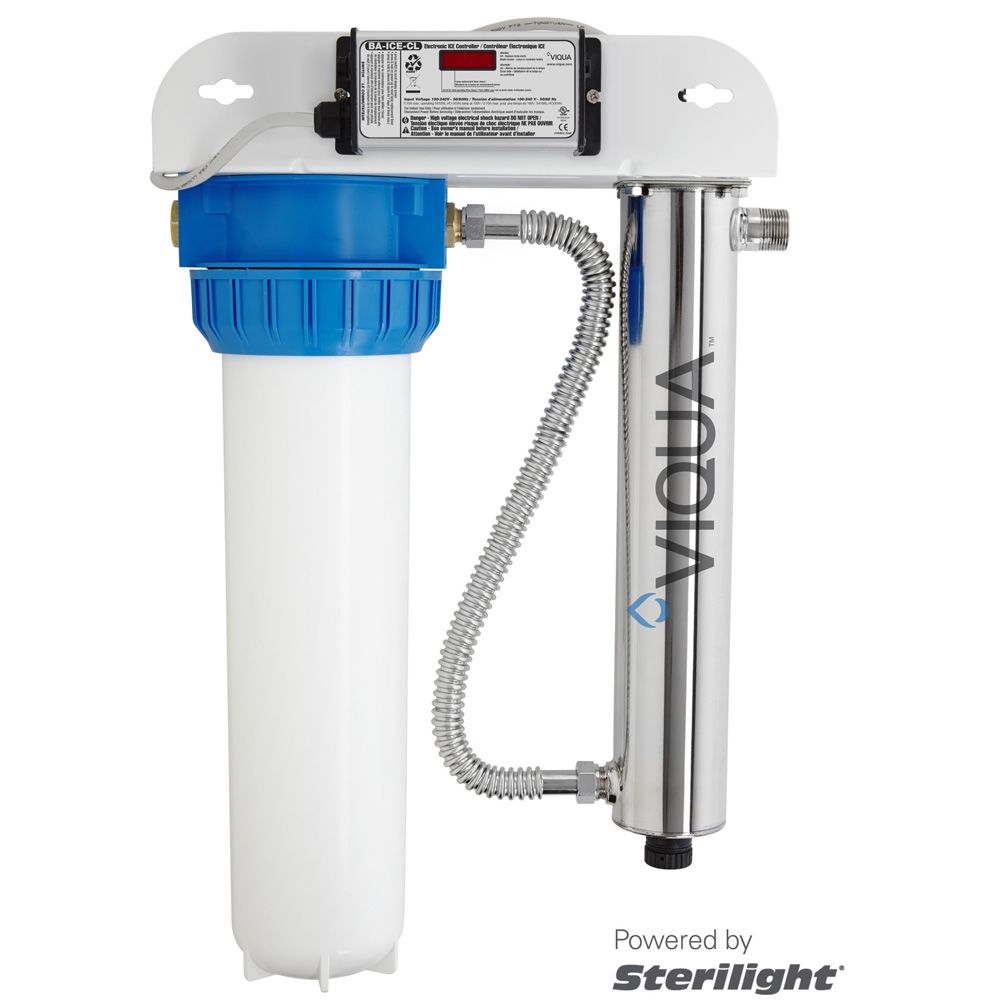

The Viqua VH410-F20 Integrated Ultraviolet System is a great whole house filtration solution. The UV system integrates high-output, UV lamp technology with a high flow, sediment pre-filter, reducing installation steps! The VH410-F20 comes mounted on a reversible steel bracket, and is extremely compact are easy to install.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • Integrated Sediment Filtration - A 5 micron pre-flter is included to the UV system, to ensure optimal performance of the UV Rays
  • Safety Guaranteed - 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Easily Programmable -A convenient controller allows constant output current and an universal power input
  • Monitoring System -An audible alarm will sound if lamp needs replacement, or if the system has failed, ensuring safety for your home.
  • Quality with Every Component -From the sealed case on the controller, which helps to prevent damage from accidental water intrusion, to the robust stainless steel chamber containing the UV lamp, Viqua Technology resonates quality all the way around.
  This system is compatible with the S410RL-HO Sterilight Lamp and the QSO-410 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VH410-F20 includes:
  • Sterilight Lamp (1): S410RL-HO
  • Sterilight Quartz Sleeve (1): QSO-410
  • Sterilight O-Rings (2): 410867


NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Specifications

    Product Details

    Ambient Temperature Range

    32-104 °F

    Body Material

    304 Stainless Steel

    Features

    Audible Lamp Failure

    Visual Power On

    Lamp Timer

    Frequency Rate

    50/60 Hz

    Inlet Connection

    3/4" FPT

    Max Pressure (Psi)

    125

    Min Pressure (Psi)

    5

    Outlet Connection

    3/4" FPT

    Power

    60 Watts

    Size

    3/4"

    Connection Type

    Female (FPT)

    Contaminants Reduced

    Bacteria

    Heavy Metals

    Cysts

    Diameter

    3-1/2"

    Flow Rate

    34 GPM (16mJ/cm2 Dose)

    18 GPM (30mJ/cm2 Dose)

    14 GPM (40mJ/cm2 Dose)

    Type

    Multi-Stage UV System

    Voltage

    120V

    Shipping Dimensions

    Shipping Length

    29.5 in.

    Shipping Width

    19.5 in.

    Shipping Height

    9.5 in.

    Product Weight & Dimensions

    Product Height

    10.5 in.

    Product Length

    29.5 in.

    Product Width

    19.5 in.

    Product Weight (lbs)

    31.0

Downloads

Viqua VH410-F20 UV System Powered By Sterilight 18 gpm ManualViqua VH410-F20 UV System Powered By Sterilight 18 gpm Manual
